Summary

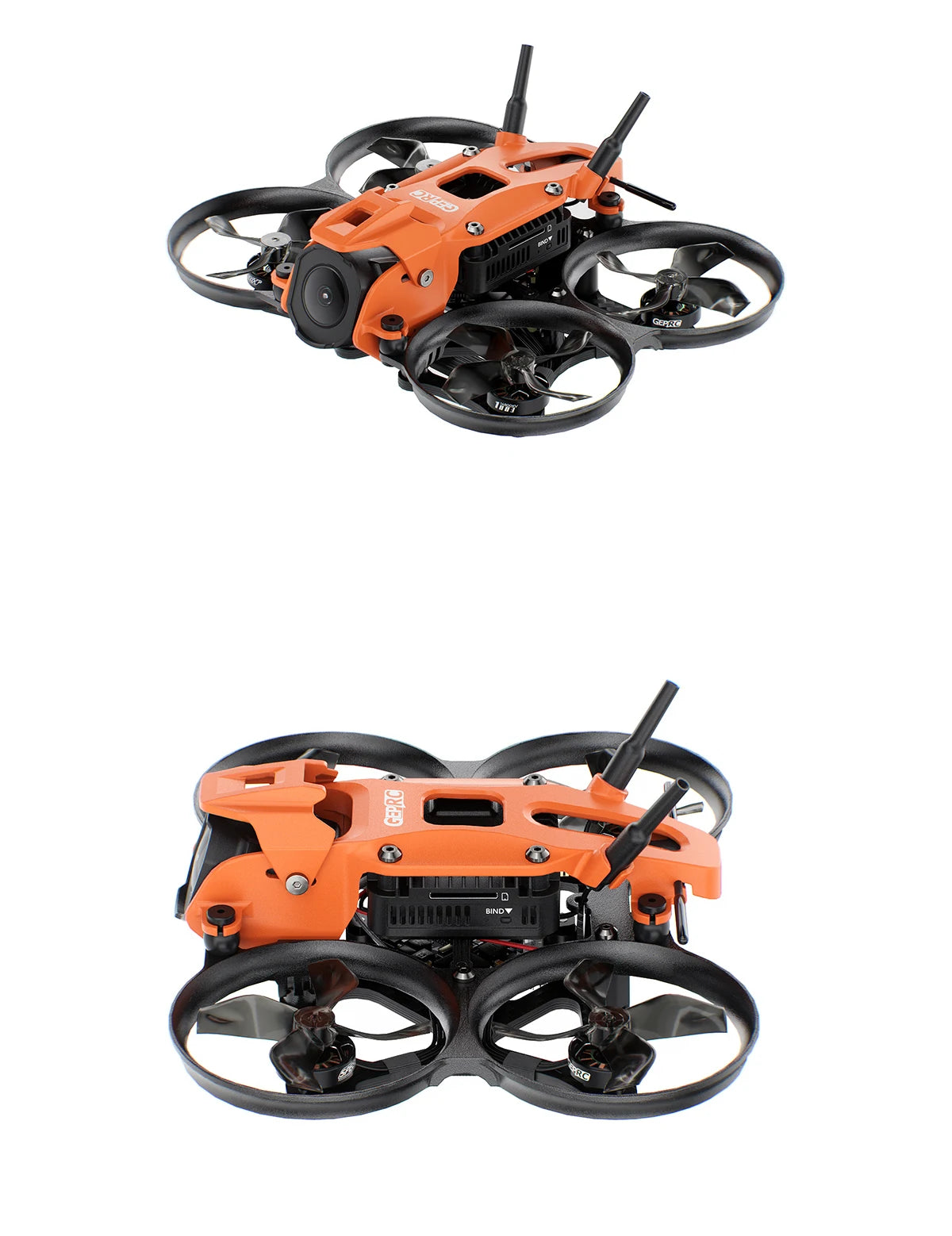

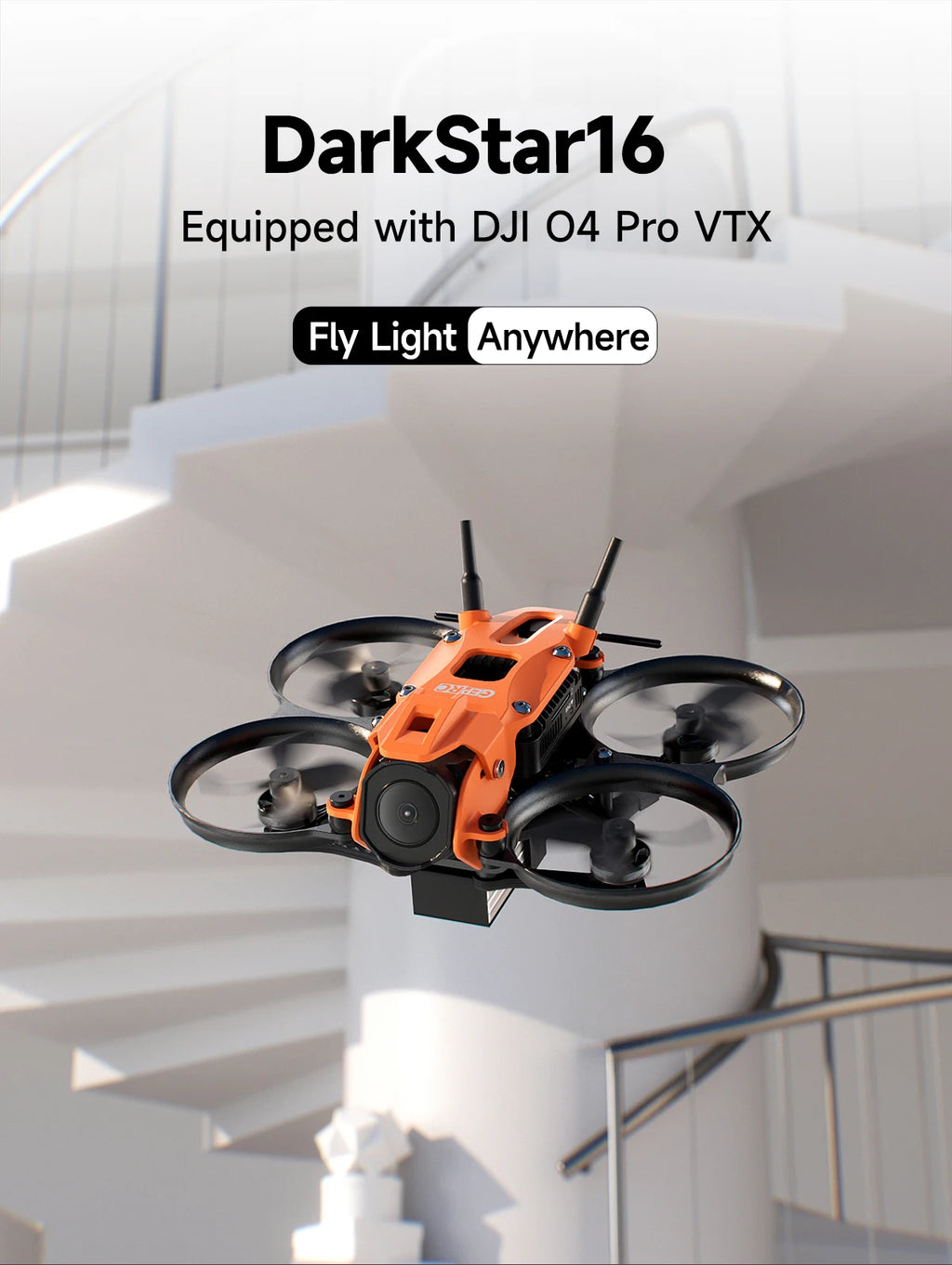

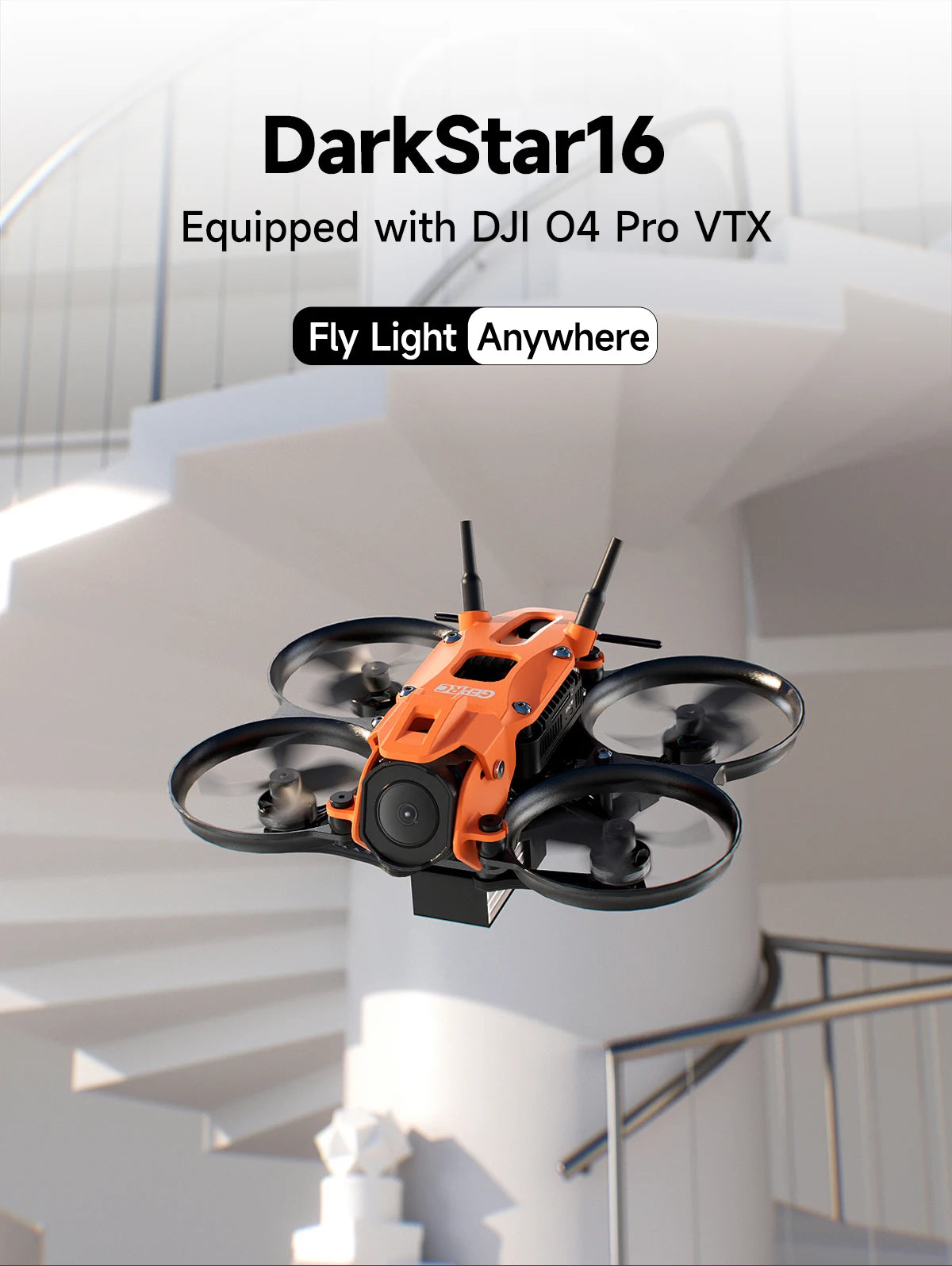

The Darkstar16 is GEPRC's latest TinyWhoop, designed for flexible, on-the-go flying.

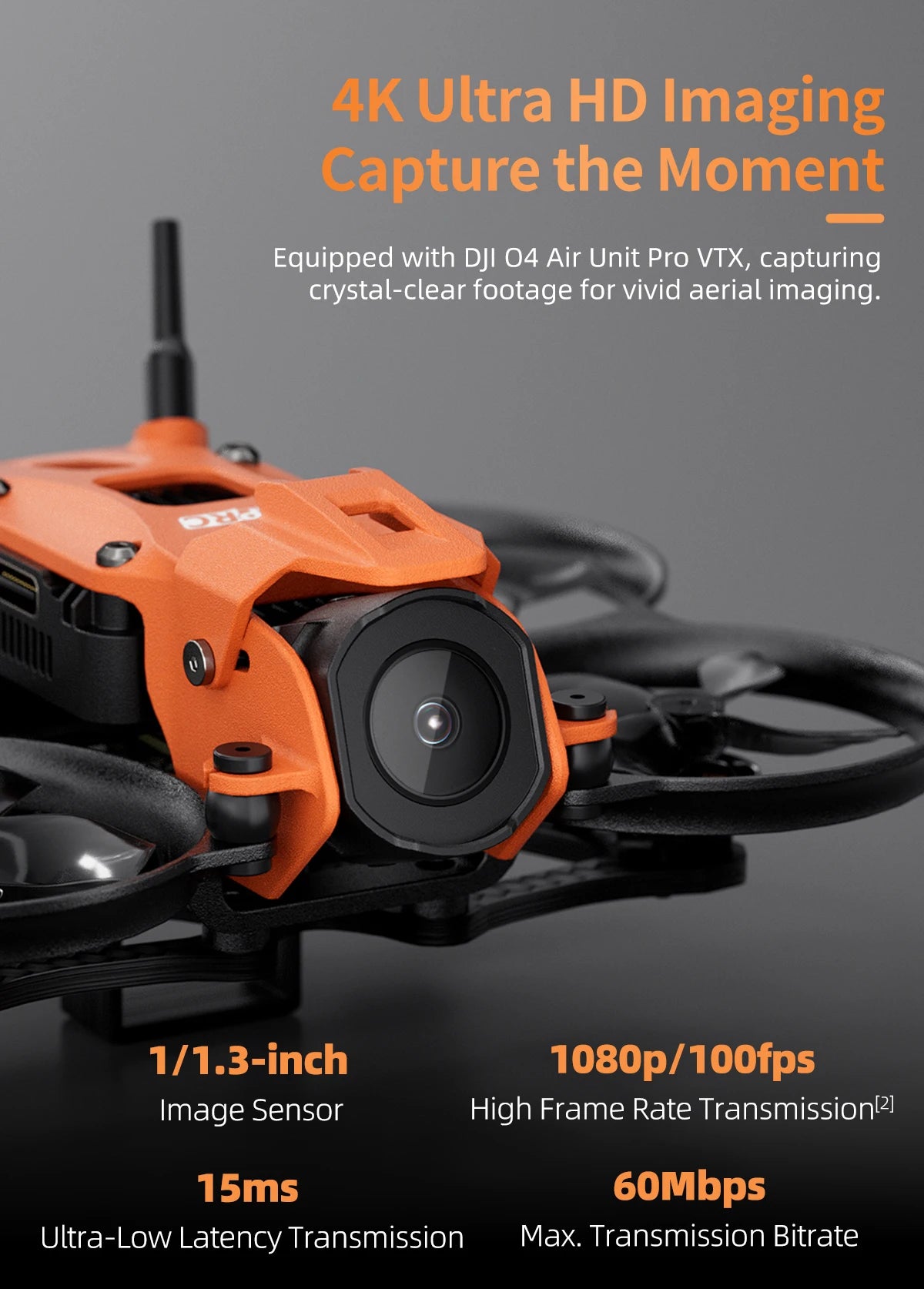

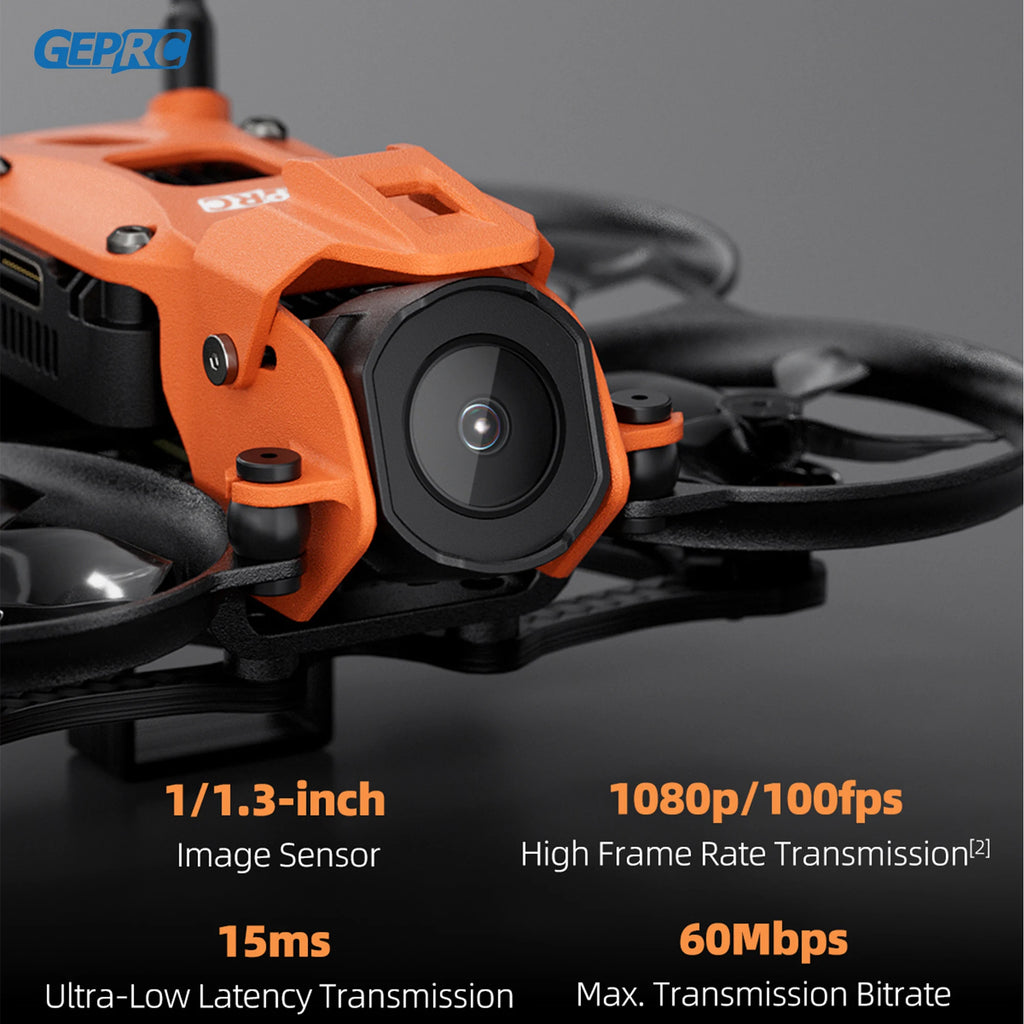

Featuring a 1.6-inch frame and the O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.

The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.
The Darkstar 16 offers a high-performance, creative flight experience.

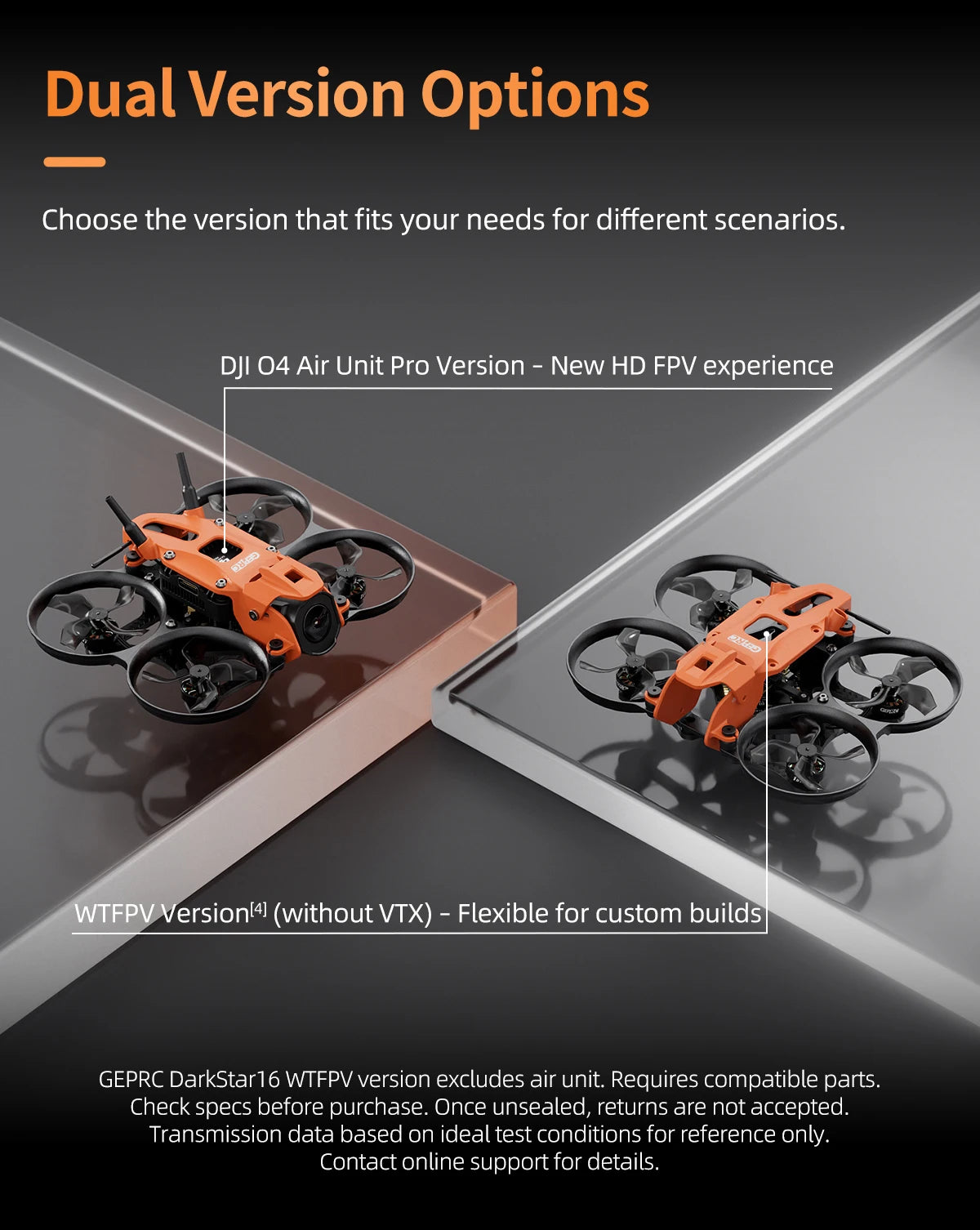

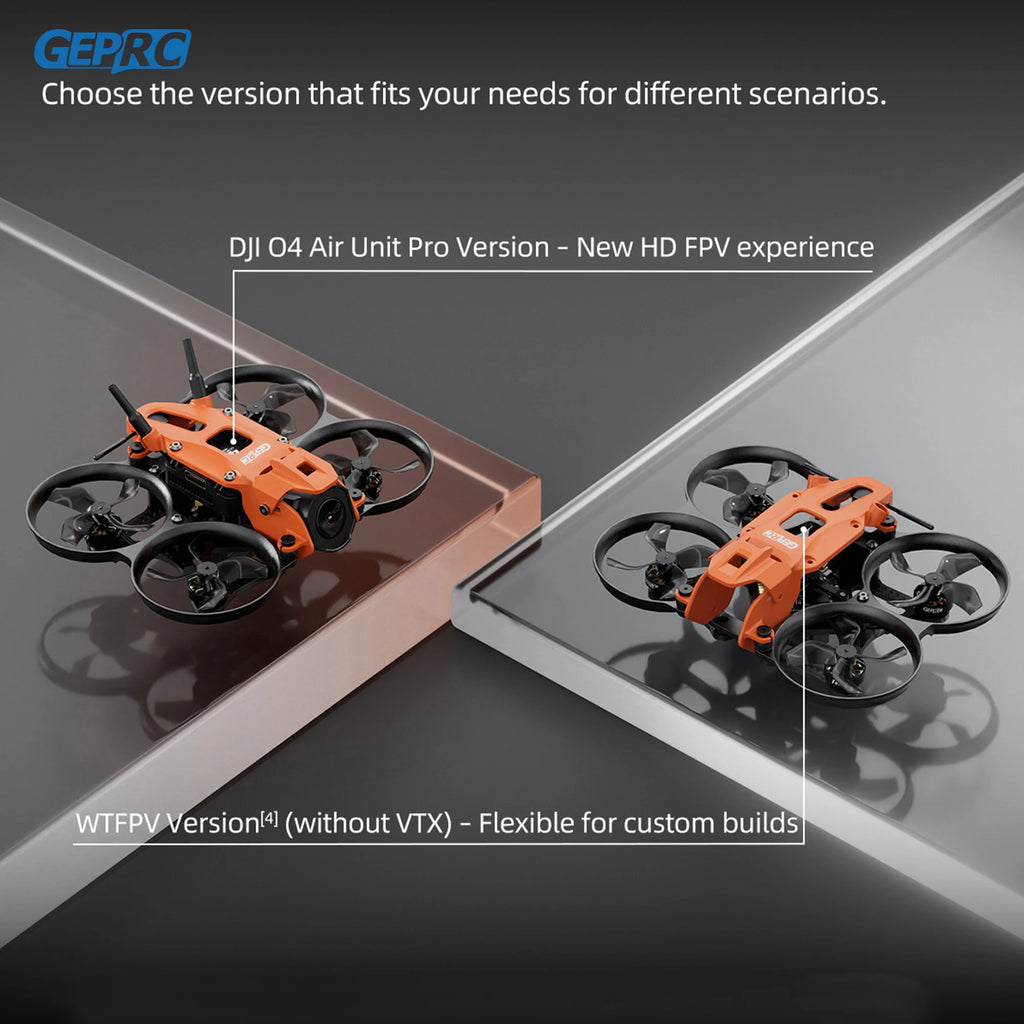

Note: Contents vary by selected WTFPV or O4 Pro specifications.

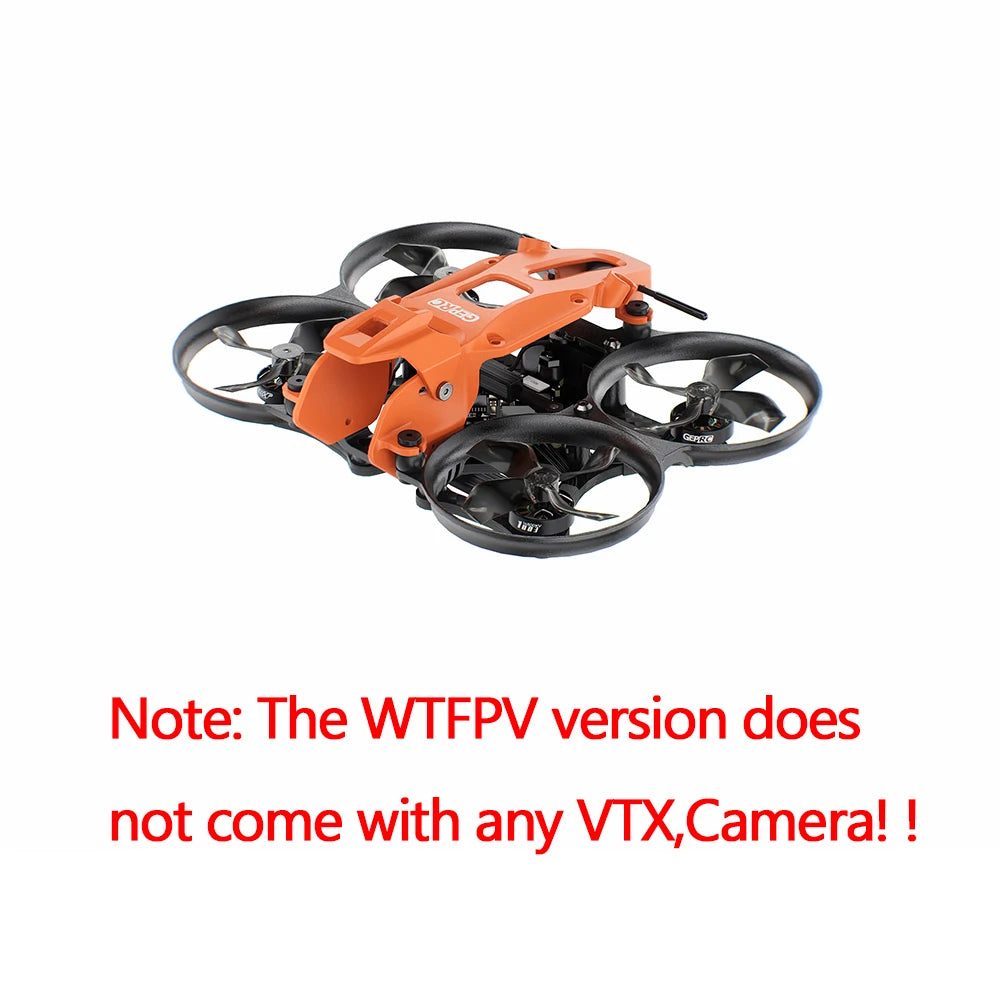

Note: The WTFPV version does not come with any VTX, camera, antenna

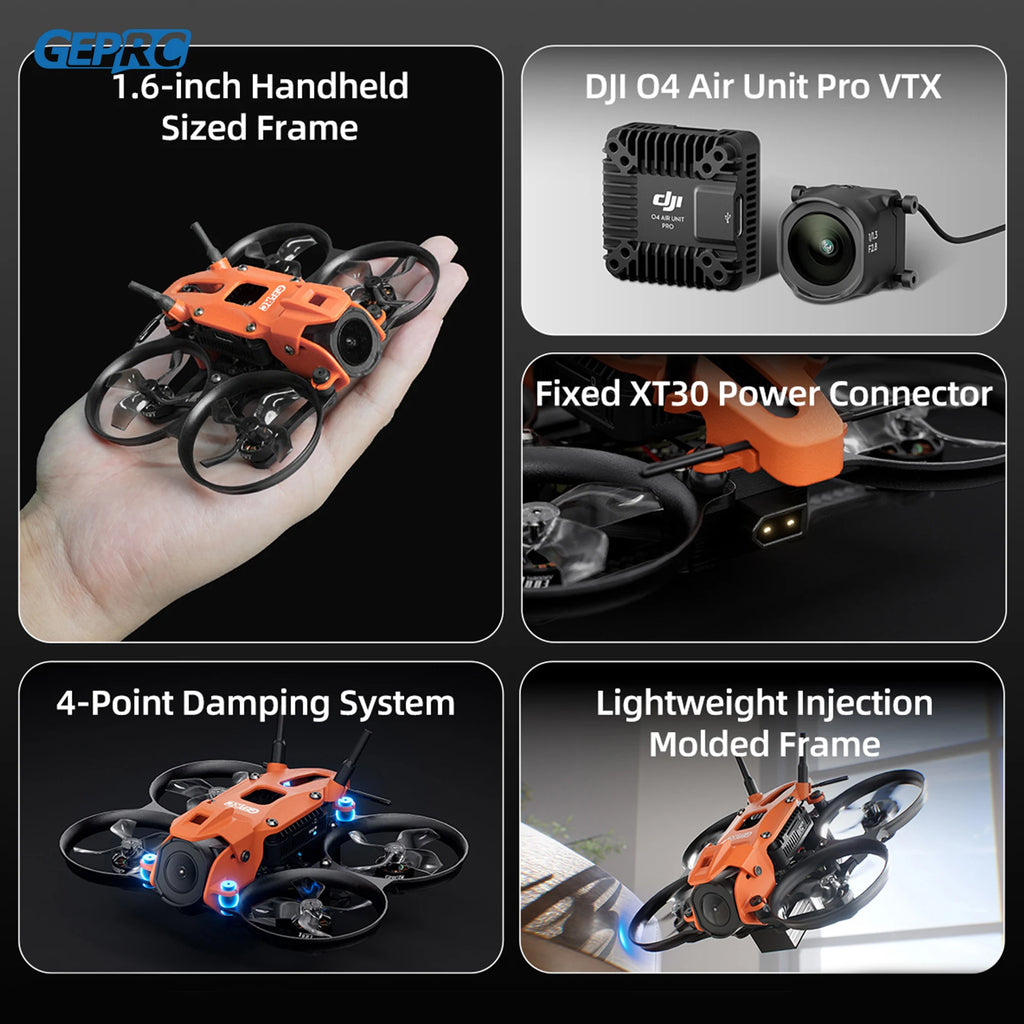

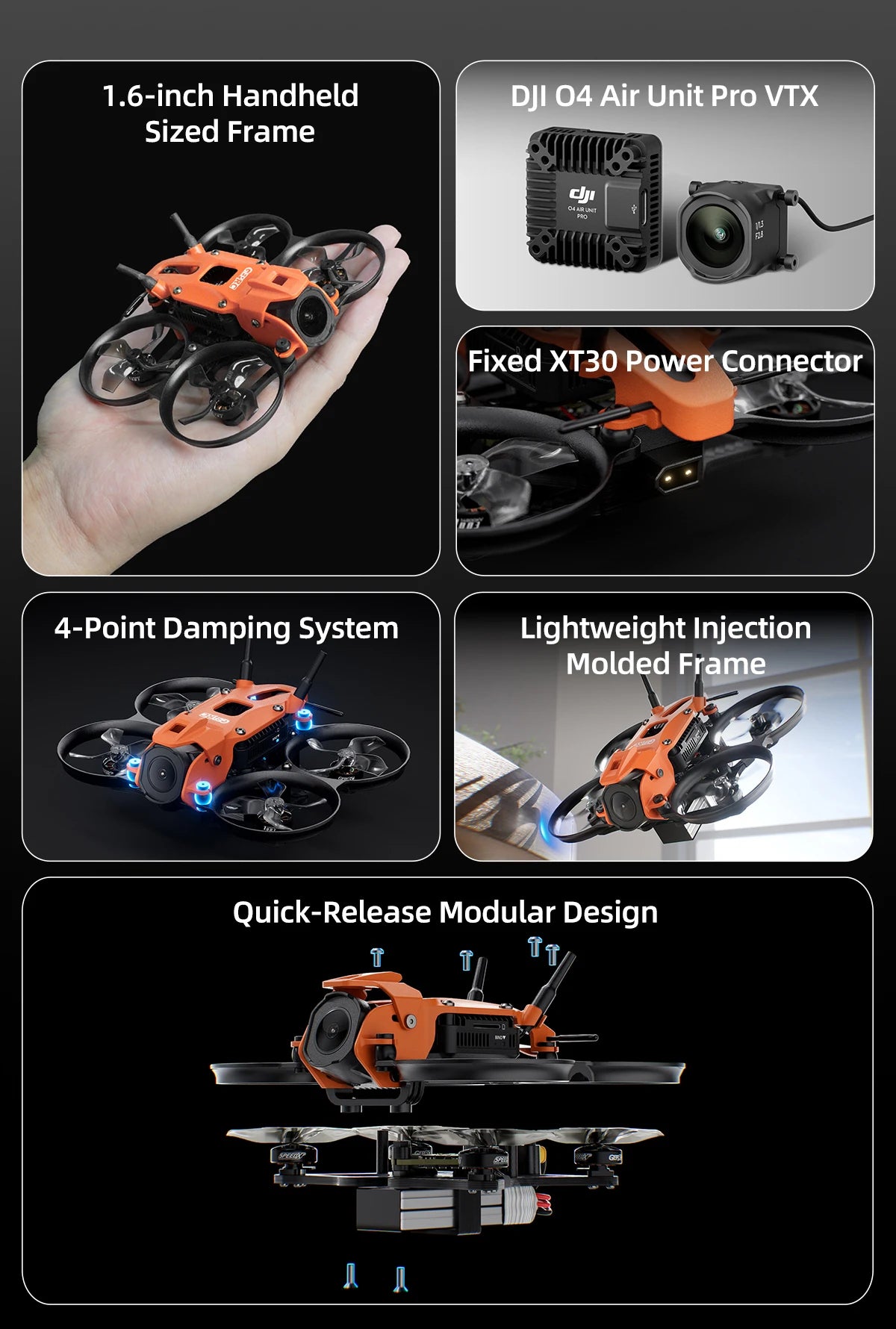

Feature

1.


2. The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.

3.

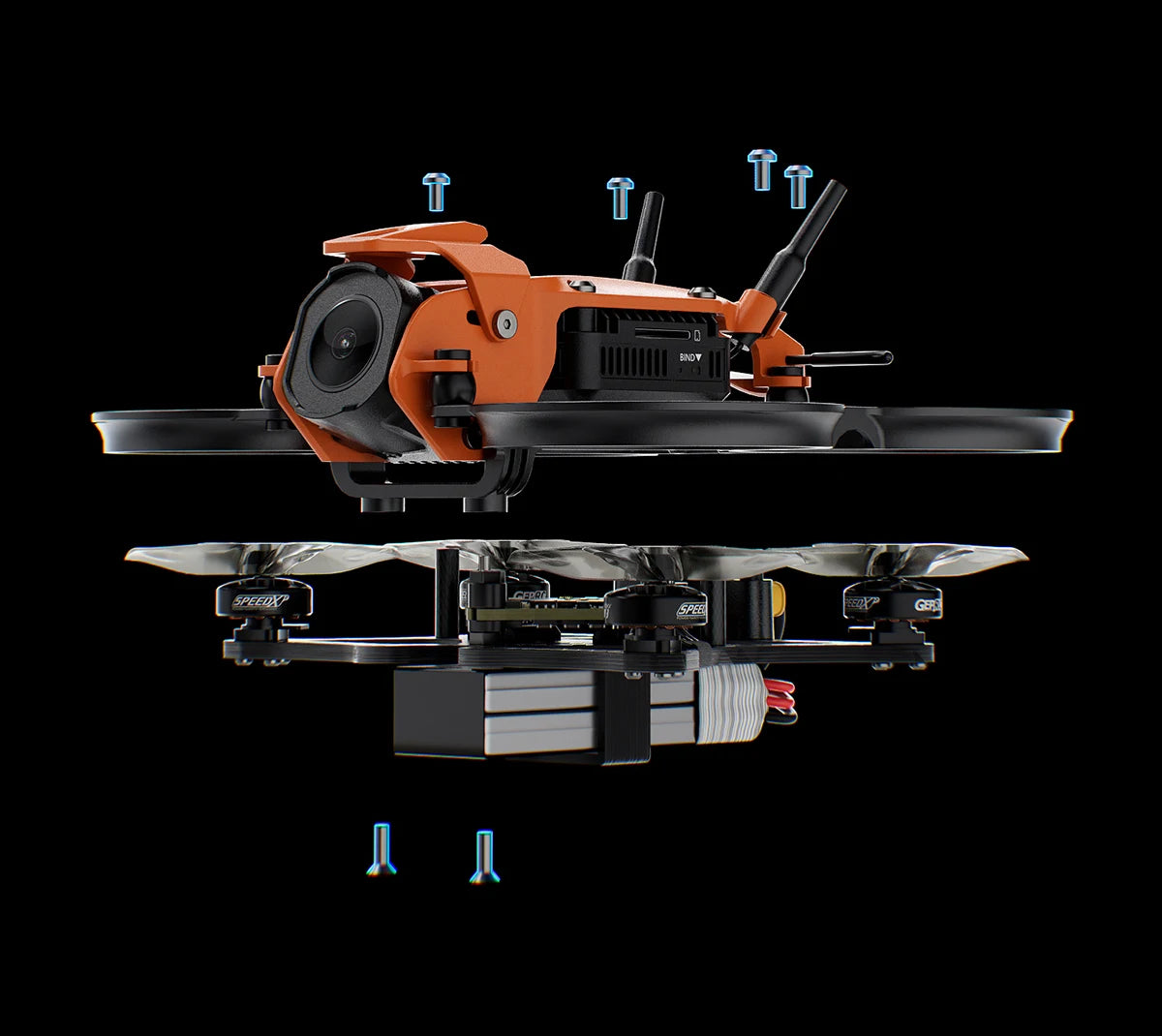

4. Quick-release design lets you detach the VTX module by removing just 6 screws.

5.


6. Equipped with the O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.

7.

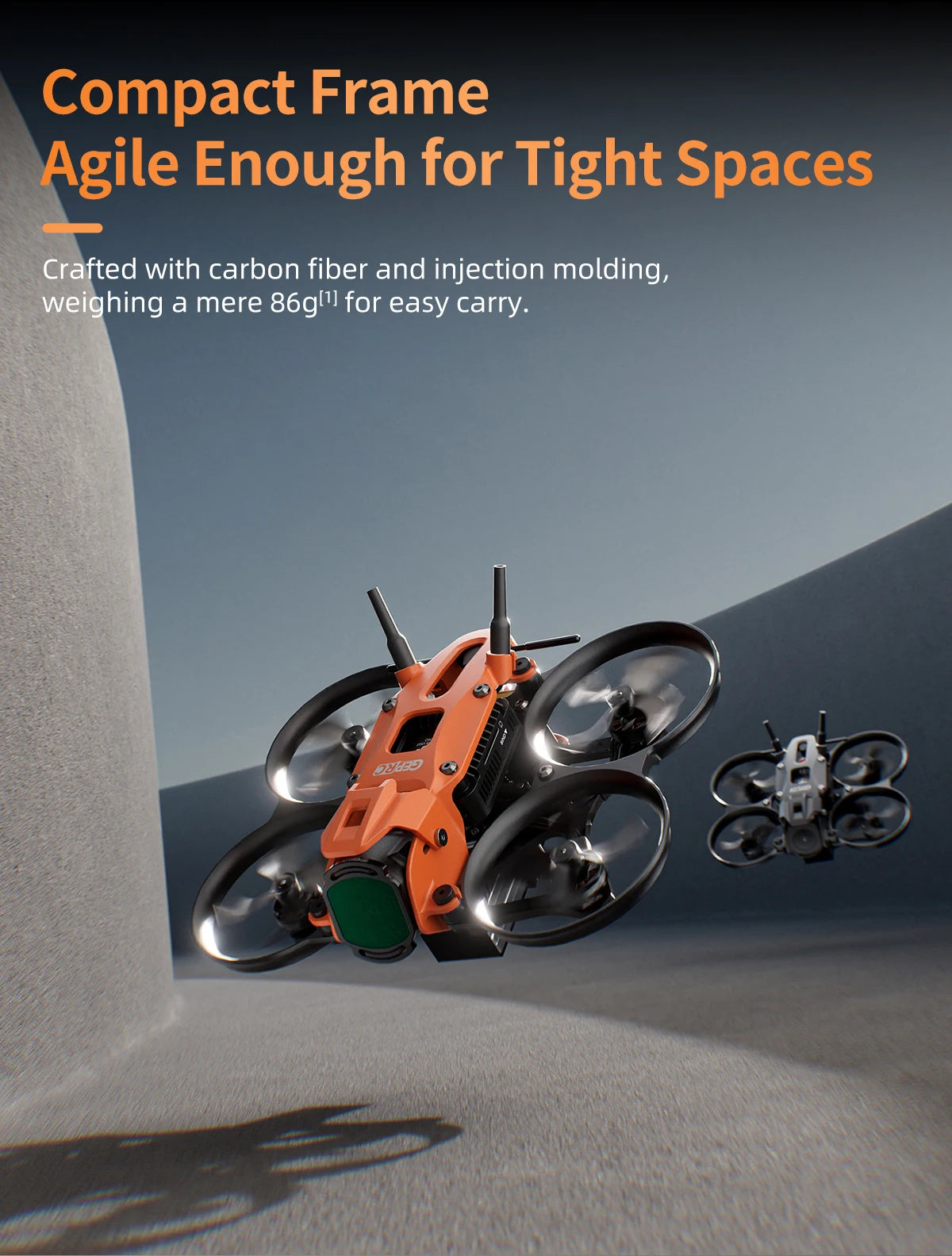

8. Lightweight molding strikes a balance between durability and performance.

9.


10. The compact 1.6-inch frame offers portability for efficient filming.

11.


12. The fixed XT30 power connector ensures simple on/off operation.

13.

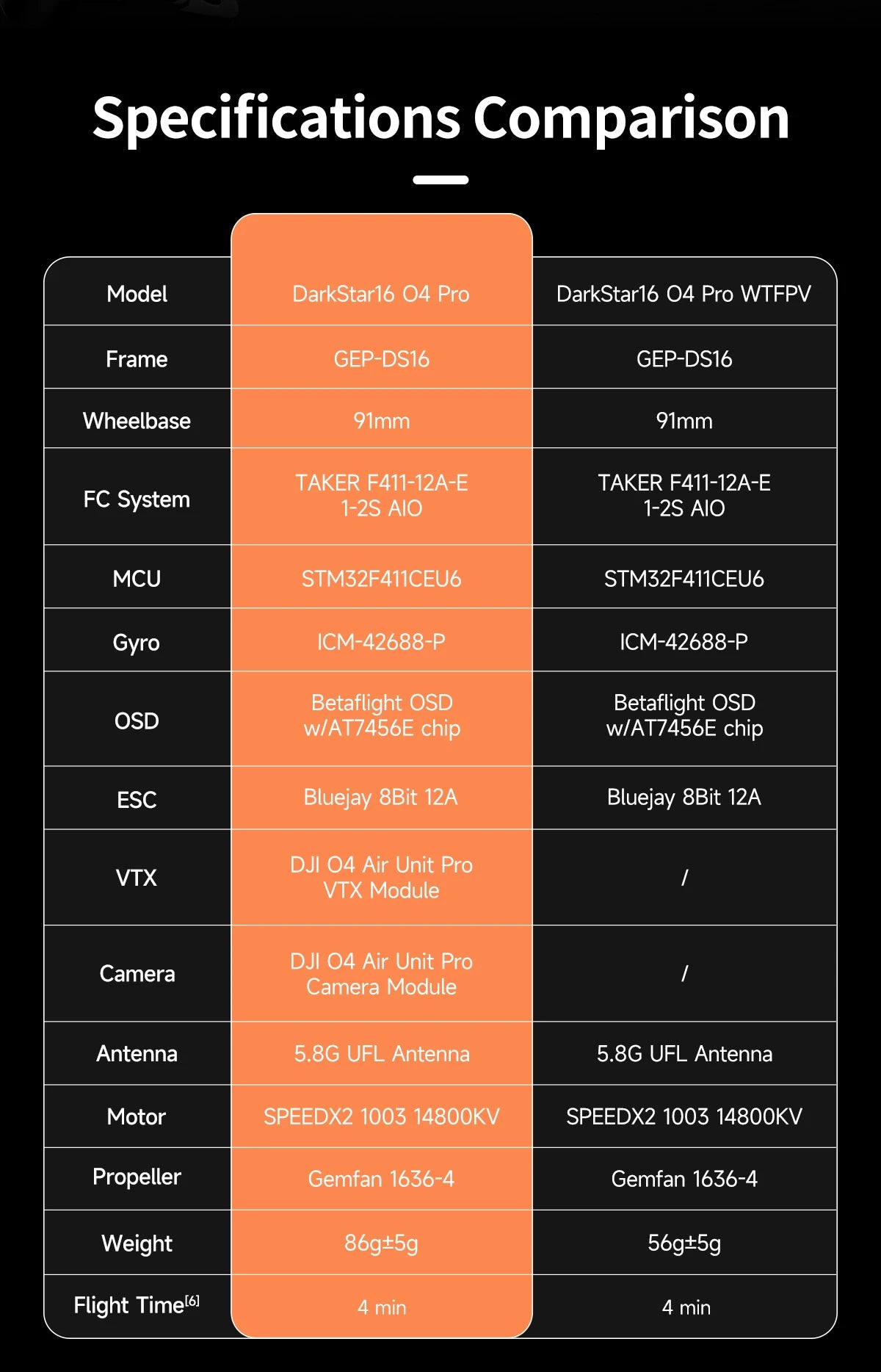

Specfication---O4 Pro

•


• Model: DarkStar16 O4 Pro

•


• Frame: GEP-DS16

•


• Wheelbase: 91mm

•

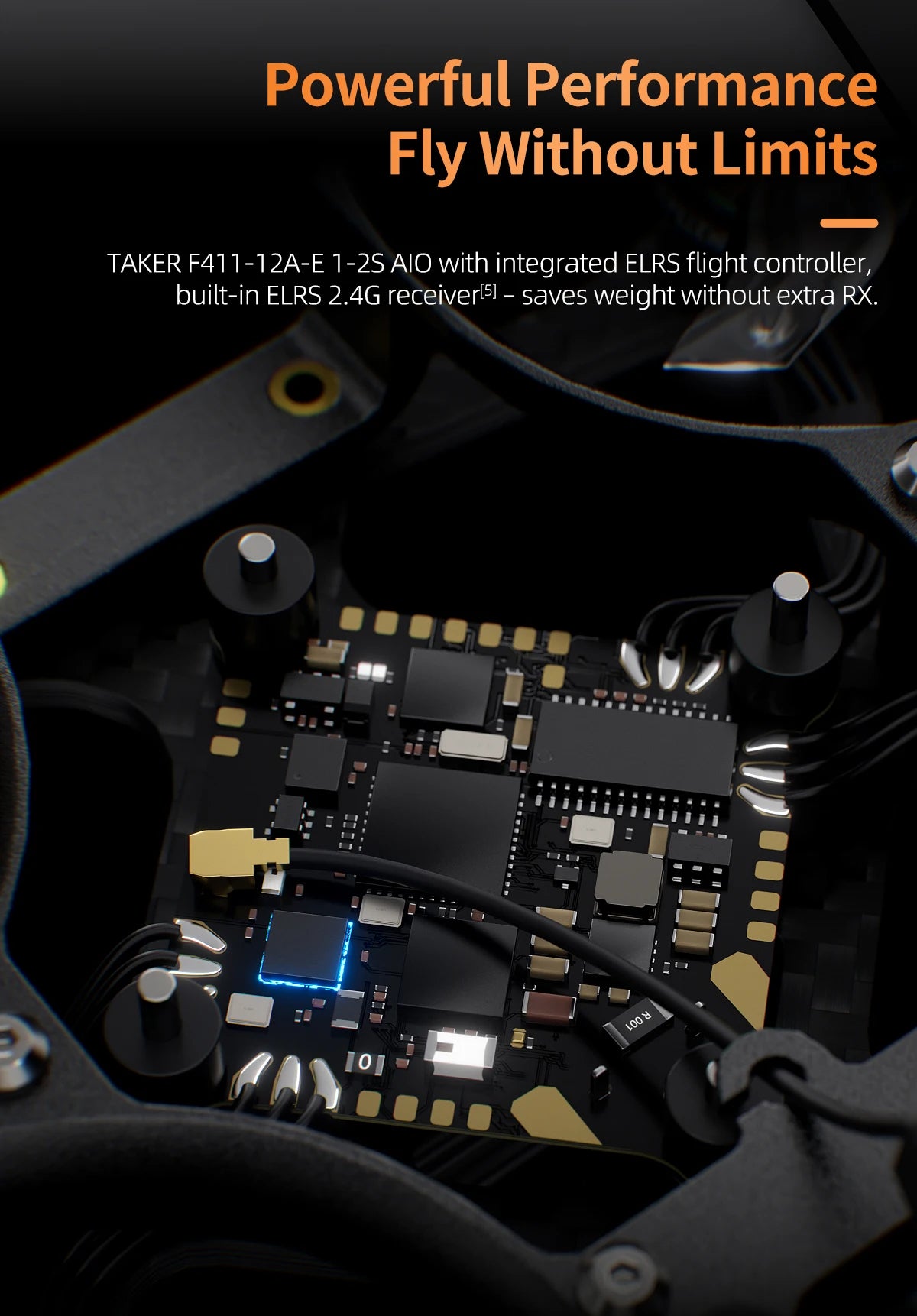

• FC System: TAKER F411-12A-E 1-2S AIO

•


• MCU: STM32F411CEU6

•


• Gyro: ICM42688-P

•


• OSD: Betaflight OSD w/AT7456E chip

•


• ESC: Bluejay 8Bit 12A

•


• VTX: O4 Air Unit Pro VTX Module

•


• Camera: O4 Air Unit Pro Camera Module

•


• Antenna: 5.8G UFL antenna

•

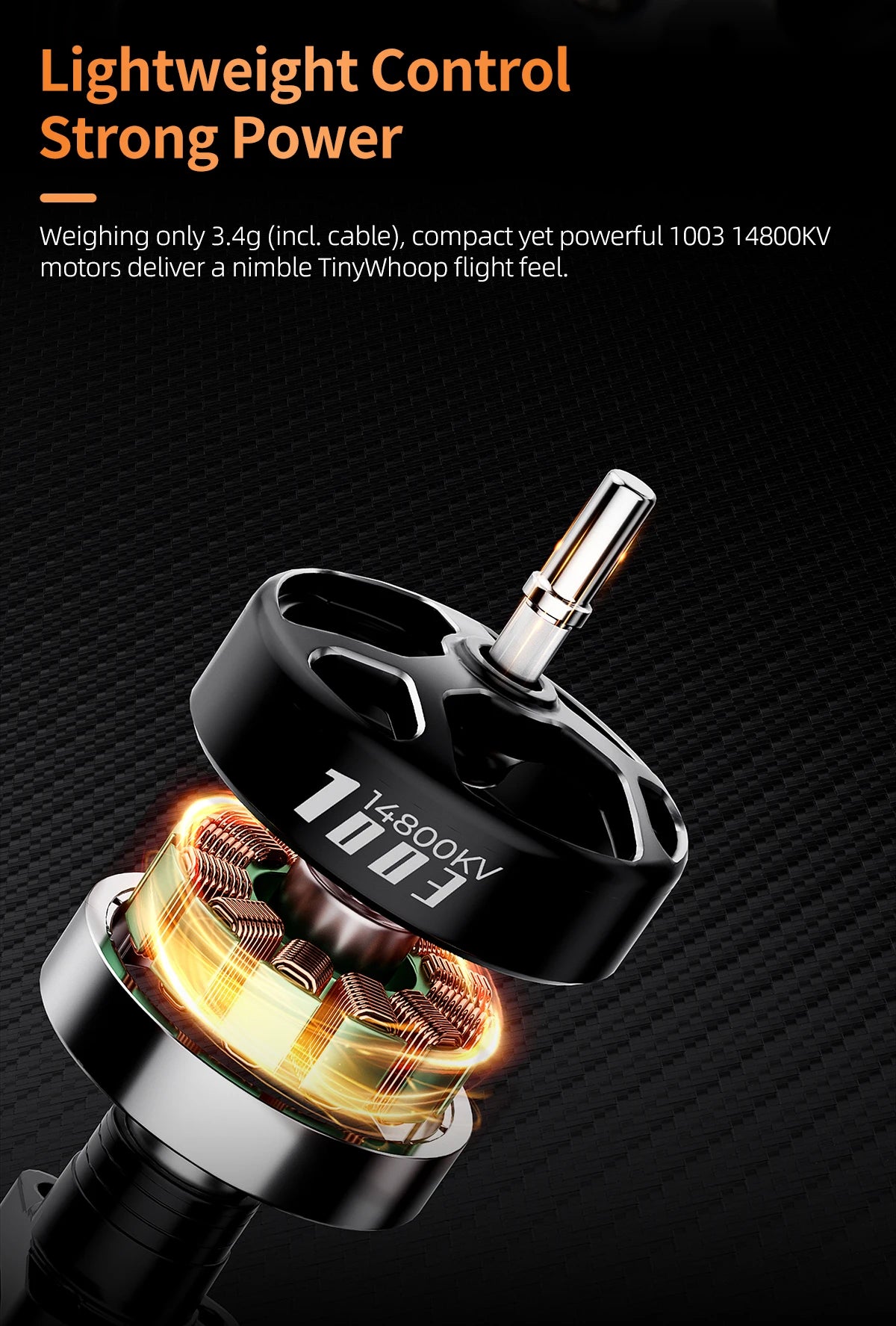

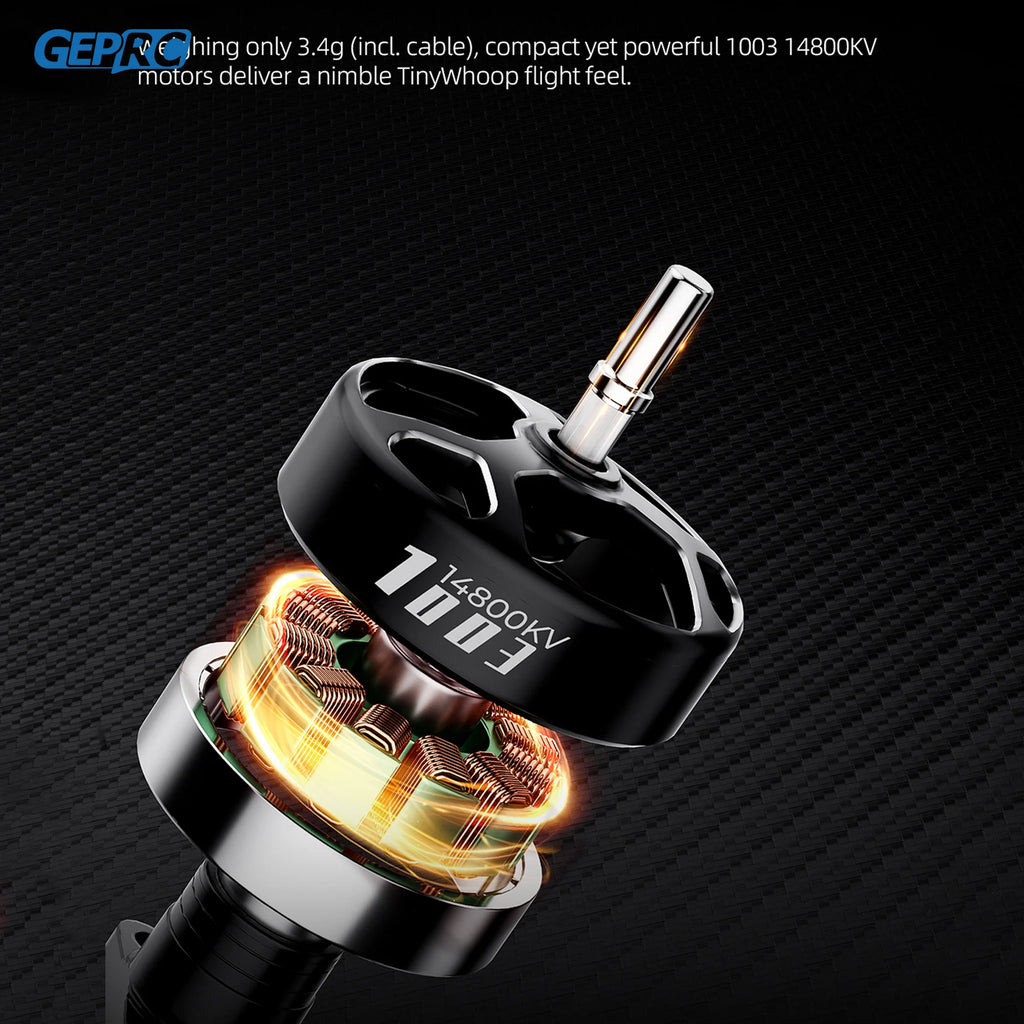

• Motor: SPEEDX2 1003 14800KV

•


• Propeller: Gemfan1636-4

•


• DarkStar16 O4 PNP (Built-in O4 AIR Unit Pro receiver) Version Weight: 86g±5g

  Receiver: PNP / ELRS2.4G

•


• Recommended battery: LiHV 2S 530mAh

•


• Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

•

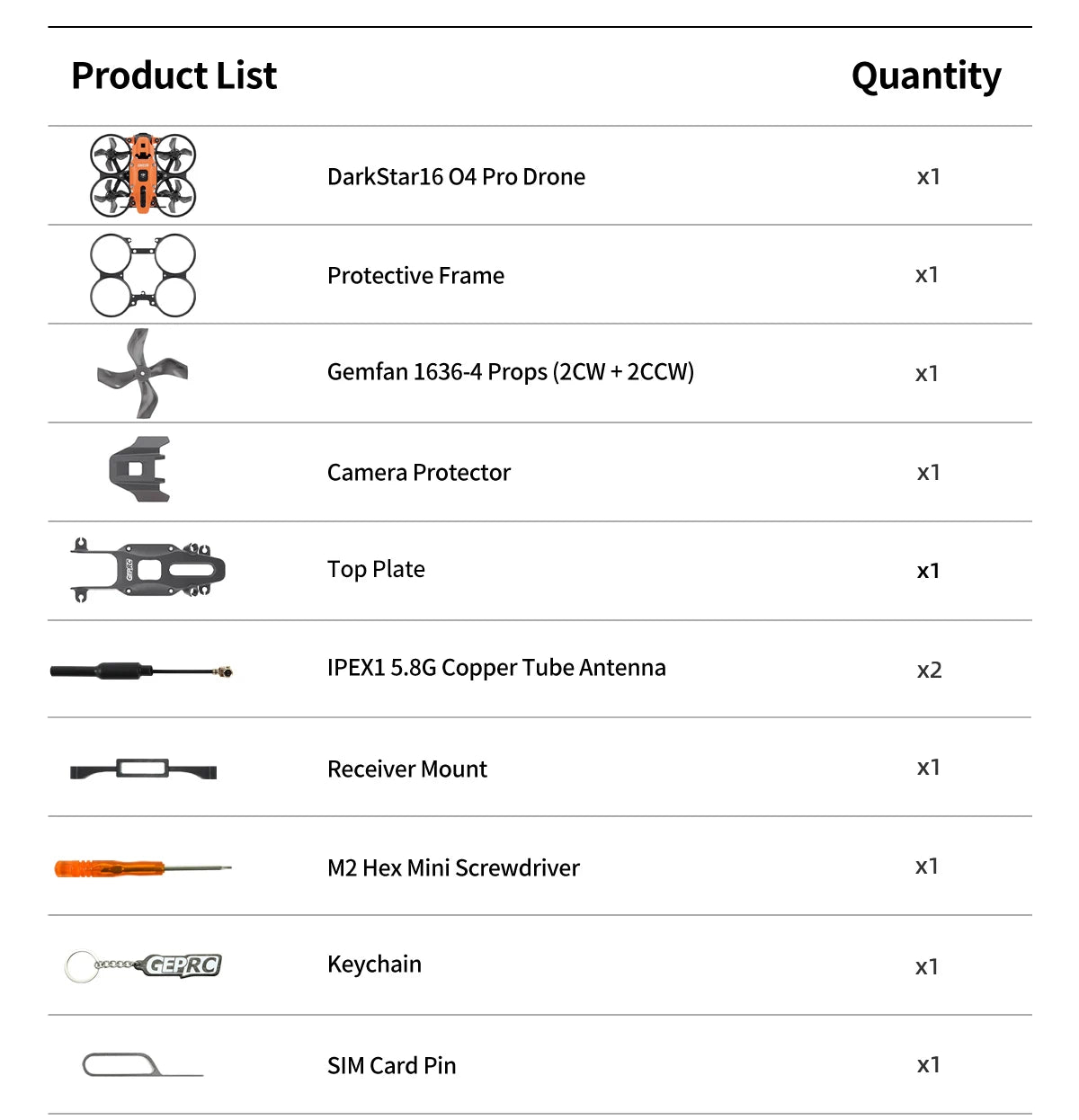

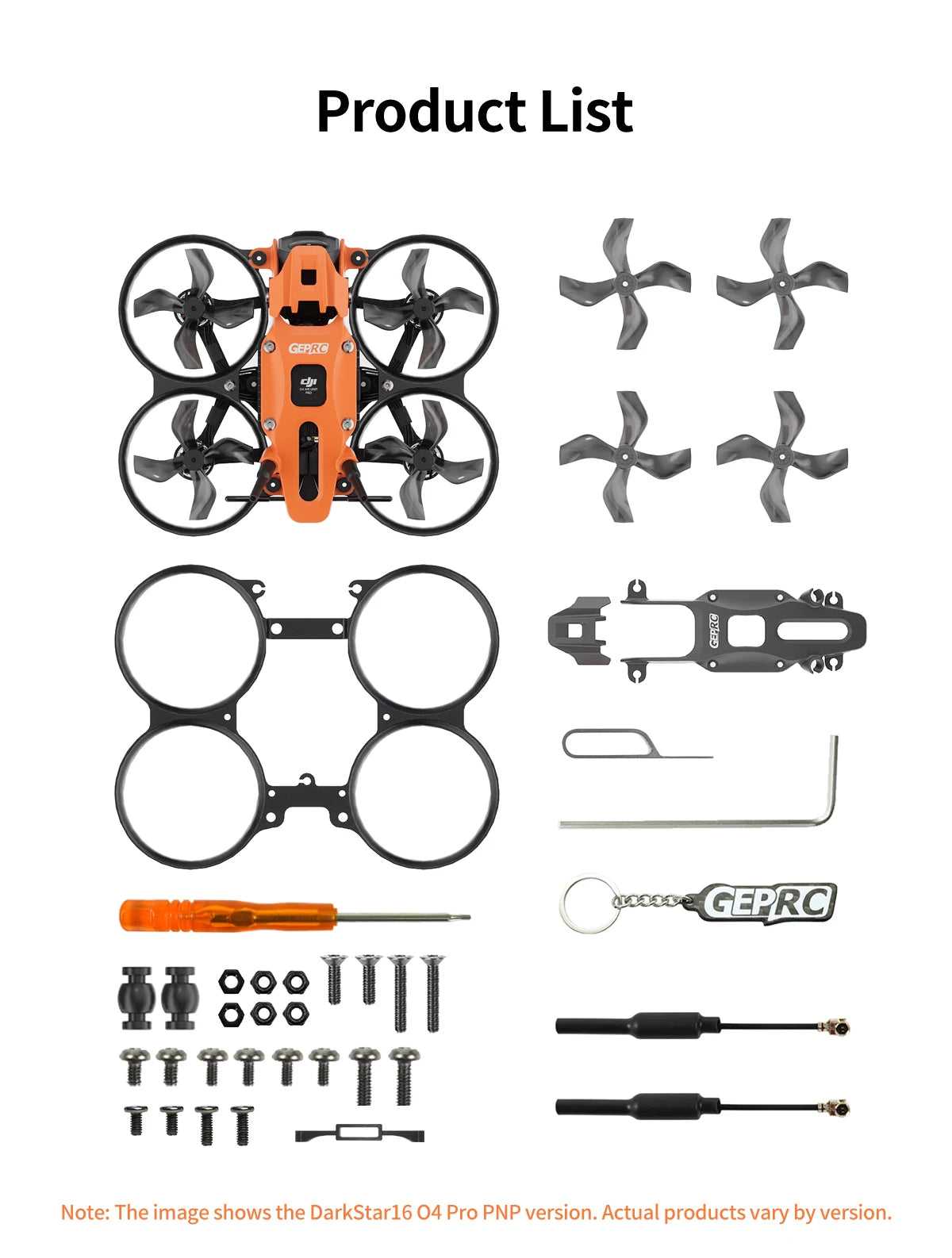

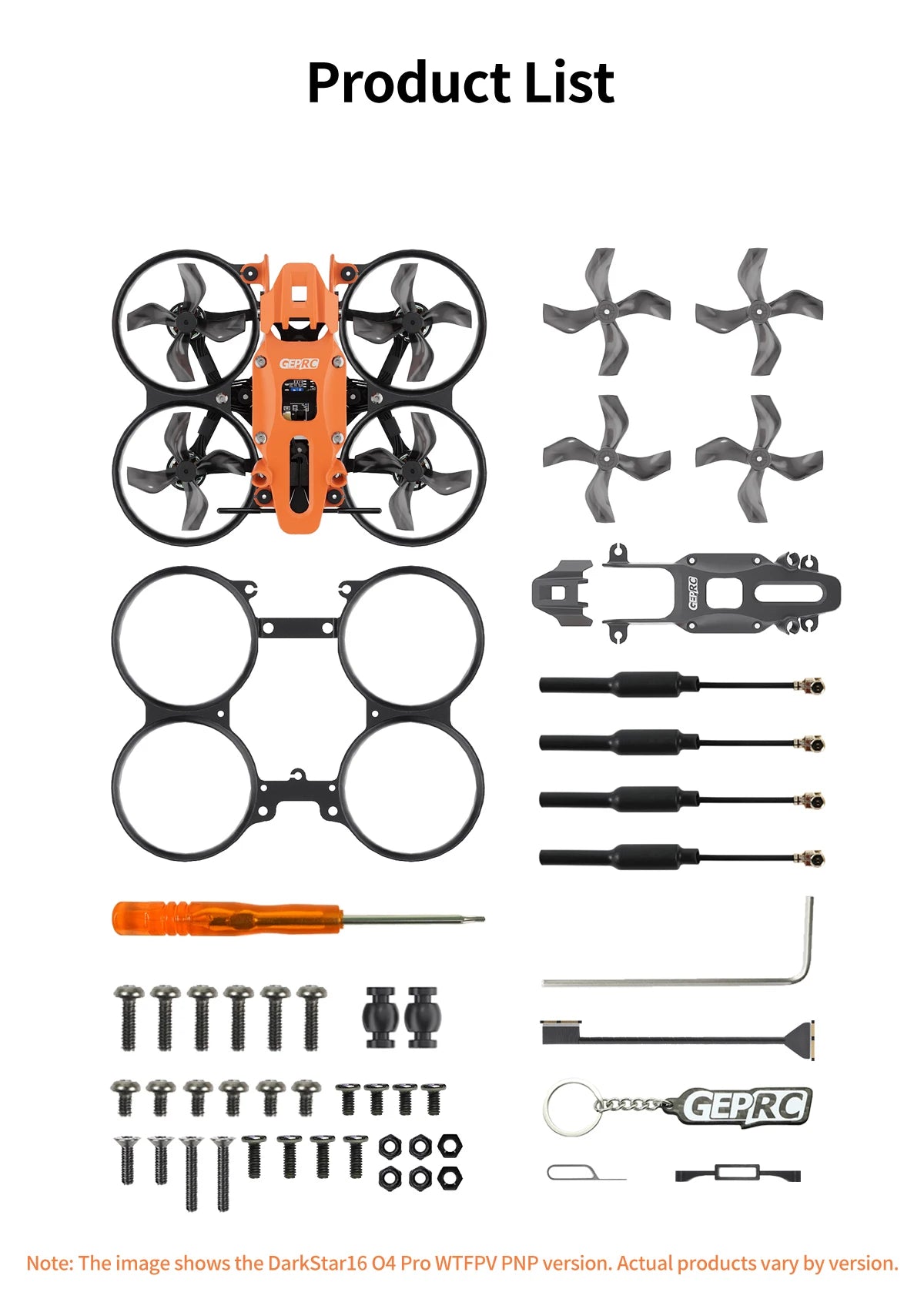

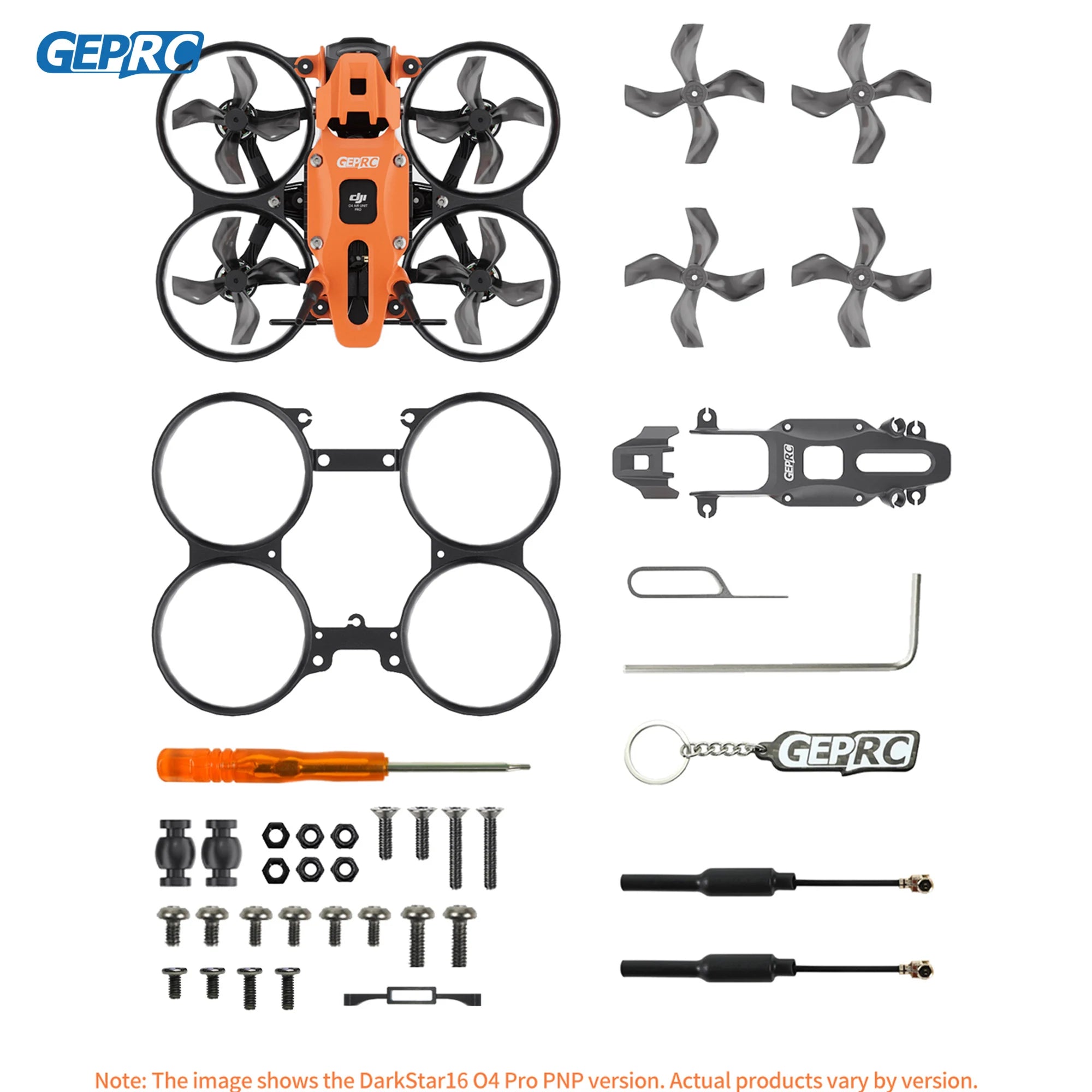

Includes


1 x DarkStar16 O4 Pro

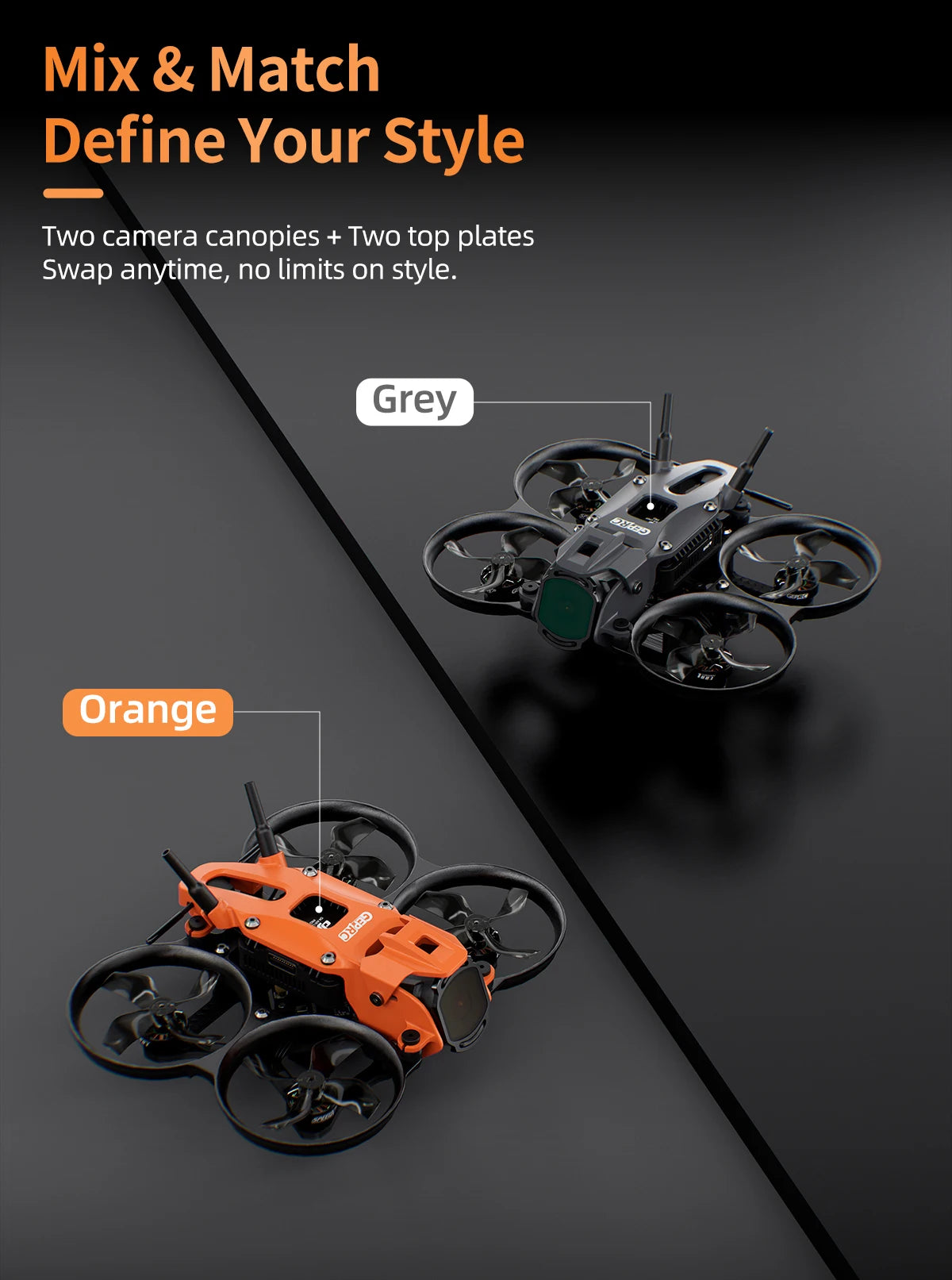

1 x Darkstar16 top plate (grey）

1 x Darkstar16 camera protector (grey)

1 x Darkstar16 protective frame (black)

1 x Gemfan1636-4 (2CW+2CCW)

1 x Plum screwdriver

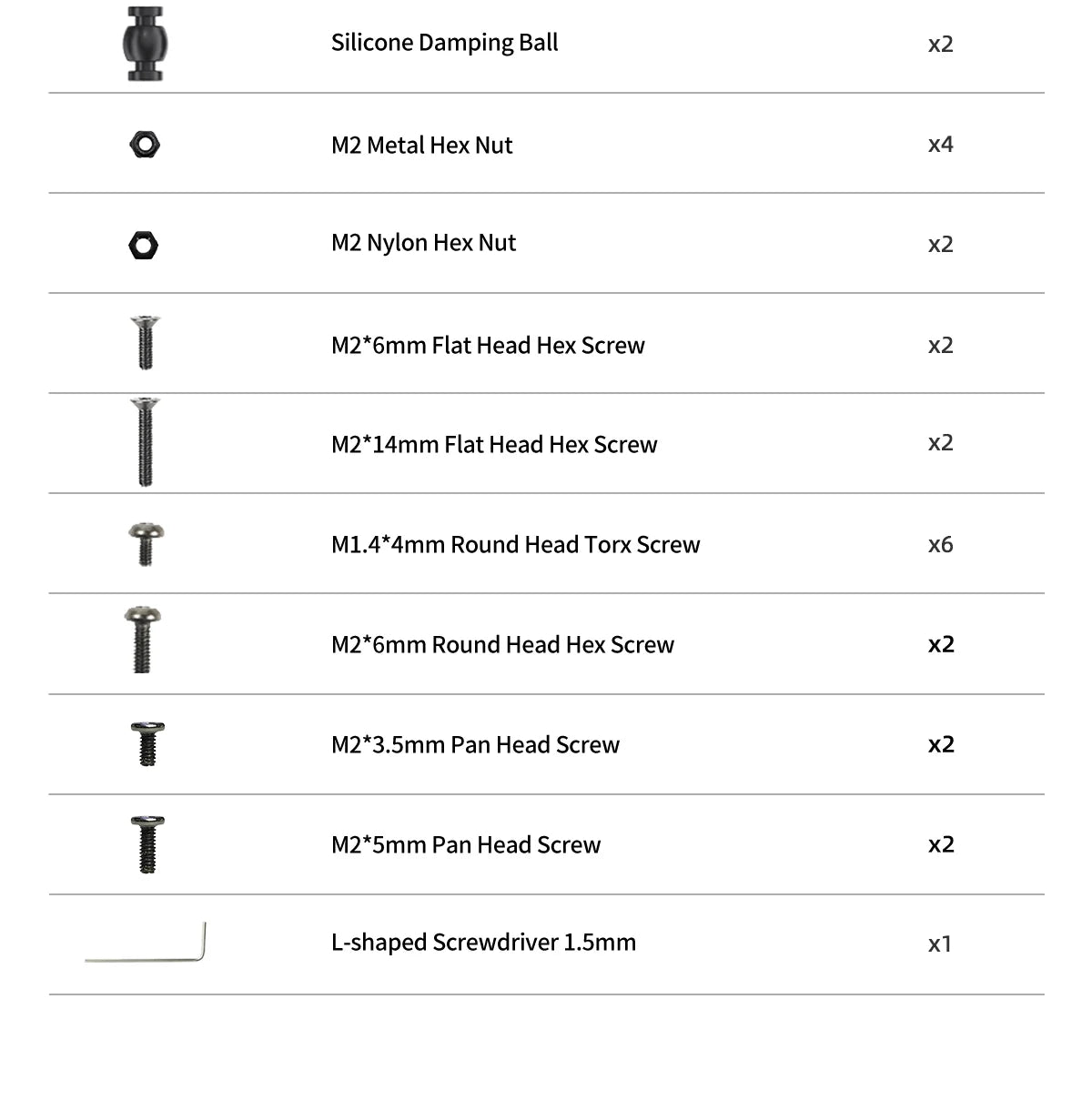

1 x Spare screw pack

1 x Keychain






Specfication--- WTFPV

•


• Model: GEPRC DarkStar16 O4 Pro WTFPV

•


• Frame: GEP-DS16

•


• Wheelbase: 91mm

•


• FC System: TAKER F411-12A-E 1-2S AIO

•


• MCU: STM32F411CEU6

•


• Gyro: ICM42688-P

•


• OSD: Betaflight OSD w/AT7456E chip

•


• ESC: Bluejay 8Bit 12A

•


• VTX: /

•


• Camera: /

•


• Antenna: 5.8G UFL antenna

•


• Motor: SPEEDX2 1003 14800KV

•


• Propeller: Gemfan1636-4

•


• GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g

•


• Receiver: PNP / ELRS2.4G

•


• Recommended Battery: LiHV 2S 530mAh

•


• Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

•

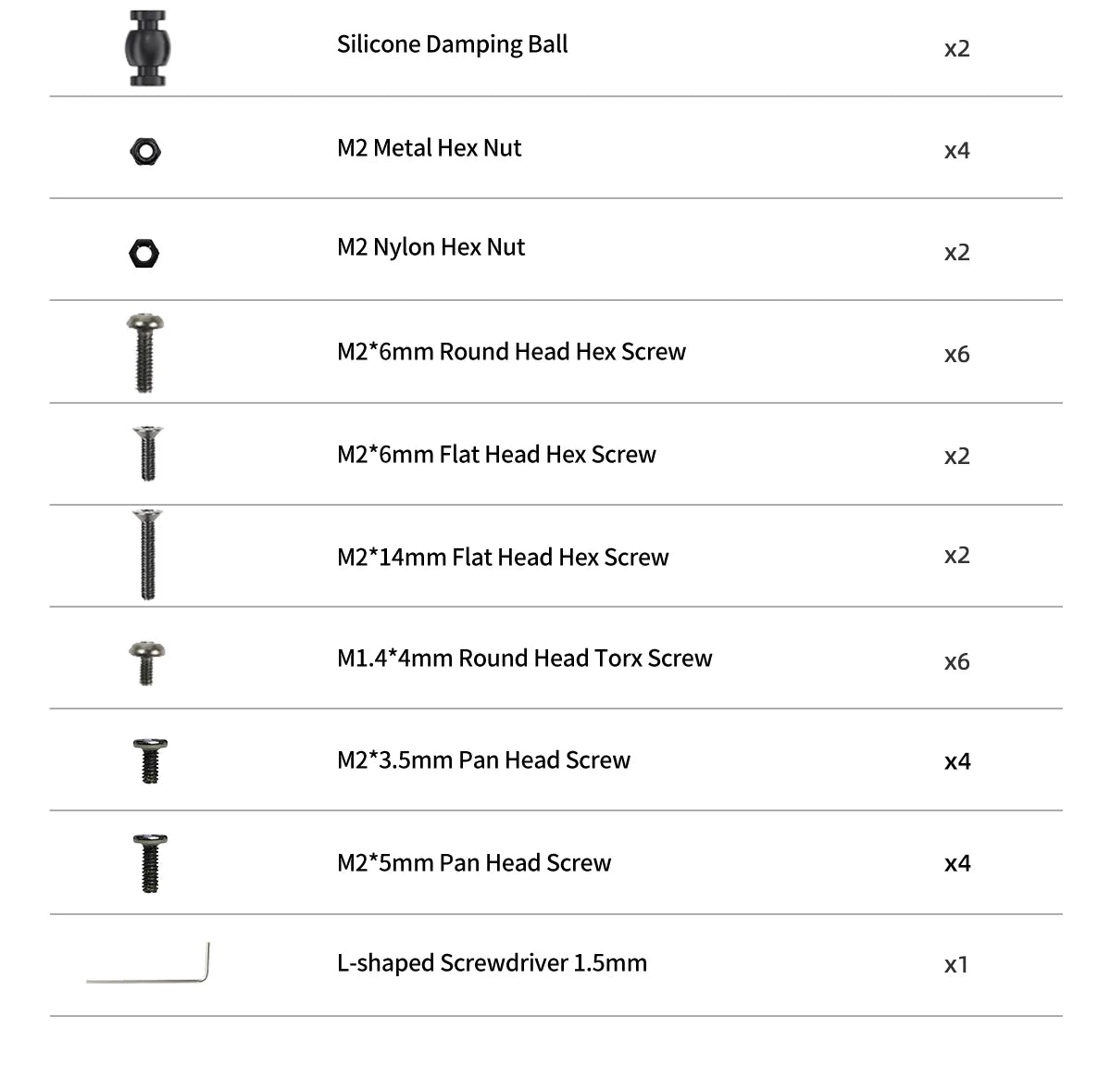

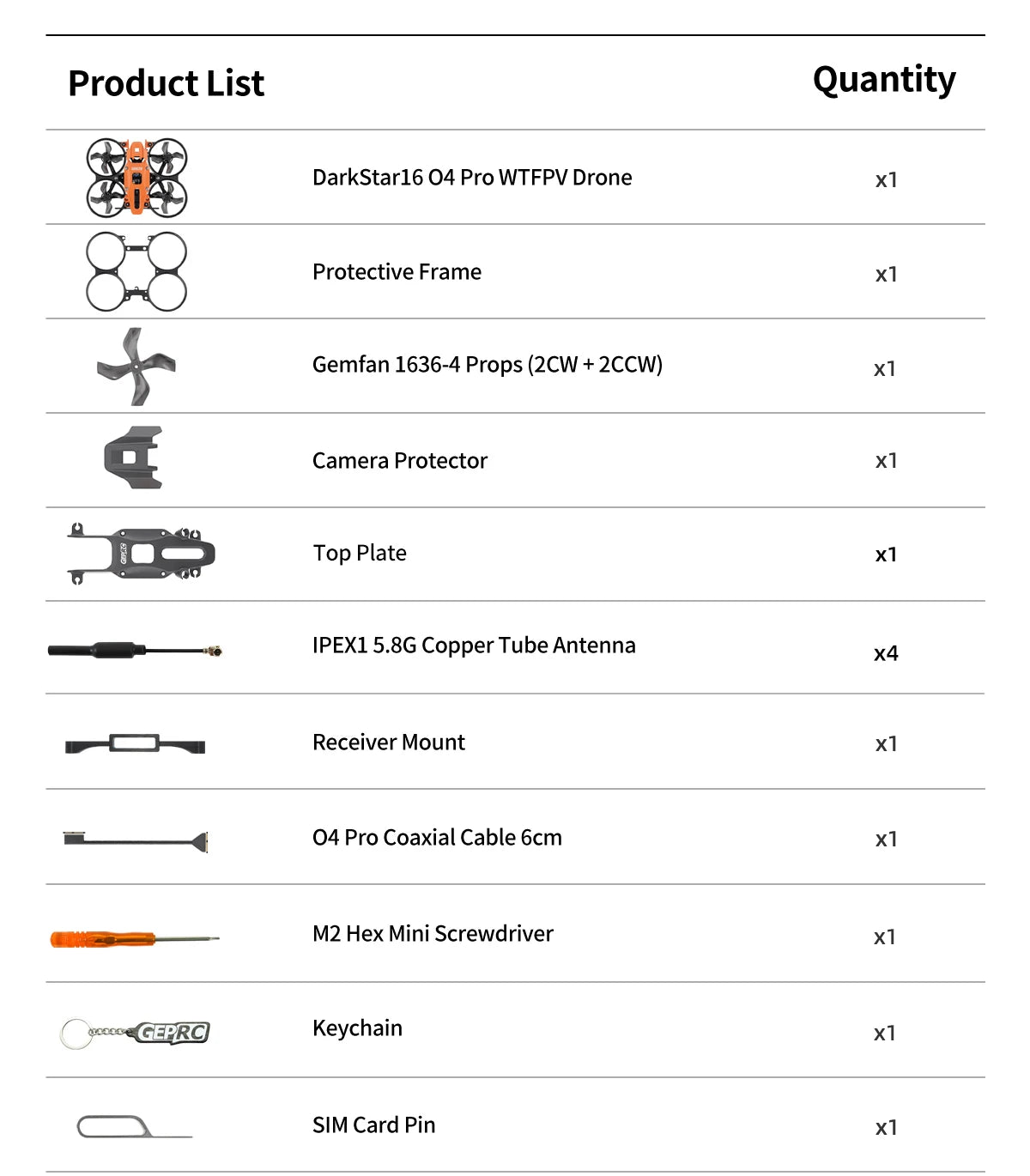

Includes
1 x GEPRC DarkStar16 O4 Pro WTFPV

1 x Darkstar16 top plate (grey）

1 x Darkstar16 camera protector (grey)

1 x Darkstar16 protective frame (black)

1 x Gemfan1636-4 (2CW+2CCW)

1 x Plum screwdriver

1 x Spare screw pack

1 x Keychain screw

2 x Damping Ball
